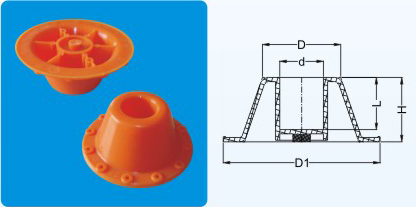

Locating Flanges
| Size | D | d | L | H | D1 | Part Number |
| 20 | 42.5 | 20.25 | 29.5 | 89.5 | 36.1 | AS30020 |
| 25 | 42.5 | 25.25 | 29.5 | 89.5 | 36.1 | AS30025 |
| 32 | 40.8 | 32.25 | 31.8 | 88.9 | 38.4 | AS30032 |
| Size | D | d | L | H | D1 | Part Number |
| 20 | 42.5 | 20.25 | 29.5 | 89.5 | 36.1 | AS30020 |
| 25 | 42.5 | 25.25 | 29.5 | 89.5 | 36.1 | AS30025 |
| 32 | 40.8 | 32.25 | 31.8 | 88.9 | 38.4 | AS30032 |
